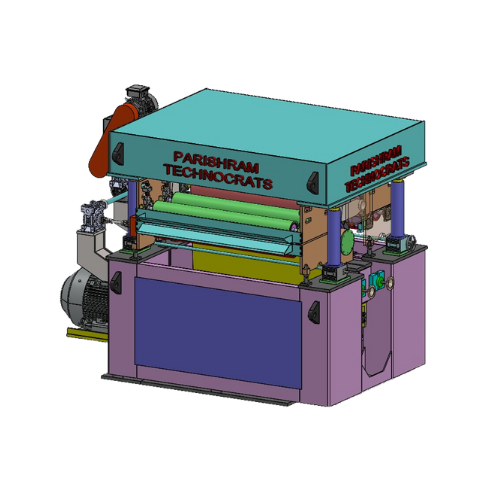

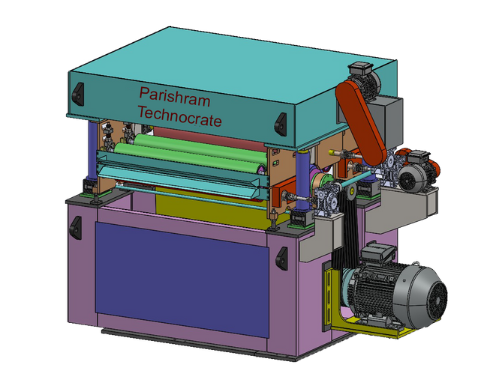

Laminate Sanding Machine Single Head Automatic Heavy Duty
Unmatched Precision (+/-0.01mm) for High-Volume Laminate Calibration.
Laminates are calibrated in Thickness with our sanding machines . The tolerances during calibration are in the range of +/-0.01mm. which is requirements of high-pressure Laminates HPL and continuous Pressure Laminate CPL are the same.
With CPL, however, there is the additional requirement that the sanding machine must run absolutely synchronously with the upstream laminate press, as these are non – flexible endless work pieces. Pressure Roll UP DOWN by ball screw with gearbox system Servo drive with PLC operated. Display on a panel with HMI Auto setting system servo drive with PLC and cylinder setting.
Technical Specification Technical Specification
- Model Top Bottom
- Sanding 24 Sheets per 01 minutes.

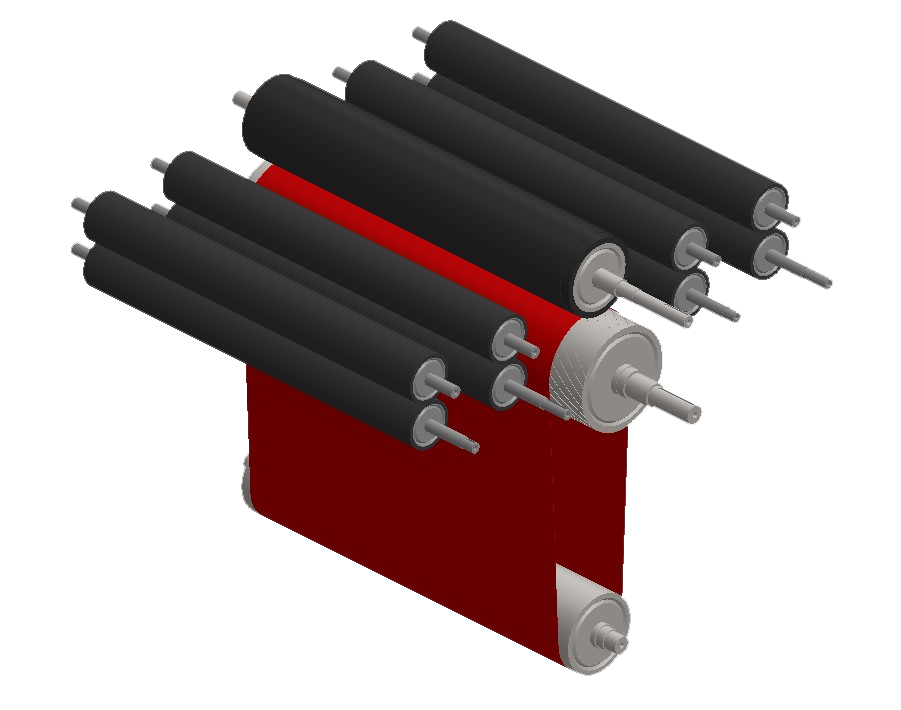

- Main Roll - Steel Roll with growing and hard chrome plated Dia. 350mm.
- Pressure Roll - Rubber Roll - Dia.270mm.
- Sanding belt size – 2850 x 1320 mm .
- Power - Main Motor - 60 HP
- Pressure Roll Motor - 10 HP.
- Guide Roll Motor - 7.5 HP
- Motorised Jack screw with Gear Box - 2 HP
Key Advantages for Your Business
This heavy-duty single head automatic laminate sanding machine sets new industry benchmarks for precision and output:
Exceptional Precision (±0.01mm): Calibrate laminate thickness with ultra-high accuracy, crucial for both High-Pressure Laminates (HPL) and Continuous Pressure Laminates (CPL). Eliminate inconsistencies for superior product quality.
Optimized for CPL Production: Features absolute synchronization with upstream presses, essential for handling non-flexible, endless CPL workpieces with perfect precision and continuity.
Blazing Speed: Achieve incredible efficiency with a sanding speed of 24 sheets per minute, significantly boosting your daily production capacity.
Robust & Heavy-Duty Construction: Built for demanding, continuous operations, ensuring maximum durability and reliability with minimal downtime.
Advanced Automatic Control: Features a pressure roll system precisely controlled by a servo drive and PLC, coupled with a display panel (HMI) for auto-setting and cylinder control.
Superior Power & Componentry: Driven by a powerful 60 HP Main Motor, complemented by 10 HP Pressure Roll and 7.5 HP Guide Roll motors. Equipped with a 350mm Main Steel Roll, Janatics FESTO pneumatic spares, and Schneider electrical fittings for peak performance.
Largest Belt Size for Performance: Utilizes a 2850 x 1320 mm sanding belt, ensuring optimal contact and efficient material removal for a superior finish.
Precise Motorized Jack Screw: Includes a 2 HP Motorised Jack screw with Gear Box for highly accurate and stable pressure roll adjustments.
Enhanced Safety & Control: Features a pneumatic brake with a special cast body (Disk Brake) and a specially designed brake pad for immediate, secure stopping and optimal safety.
Ideal For: Demanding Laminate Production
This Heavy Duty Single Head Laminate Sanding Machine is the definitive choice for industries requiring the highest precision and speed:
High-Pressure Laminate (HPL) Manufacturing: Achieve exact thickness calibration for premium HPL products.
Continuous Pressure Laminate (CPL) Lines: Ensures seamless synchronization and precise finishing for endless workpieces.
Specialty Panel Production: Ideal for any application demanding extreme thickness accuracy and a flawless surface.
Why Parishram Technocrats? Your Partner in Advanced Precision.
As an ISO & CE Certified manufacturer from Ahmedabad, India, Parishram Technocrats stands for unparalleled engineering and customer dedication. Our expert craftsmanship, commitment to tailor-made solutions, and robust after-sales support ensure your investment delivers peak performance and long-term value. Partner with us for the most precise and reliable laminate sanding solutions.
